Cold Cutting Saw

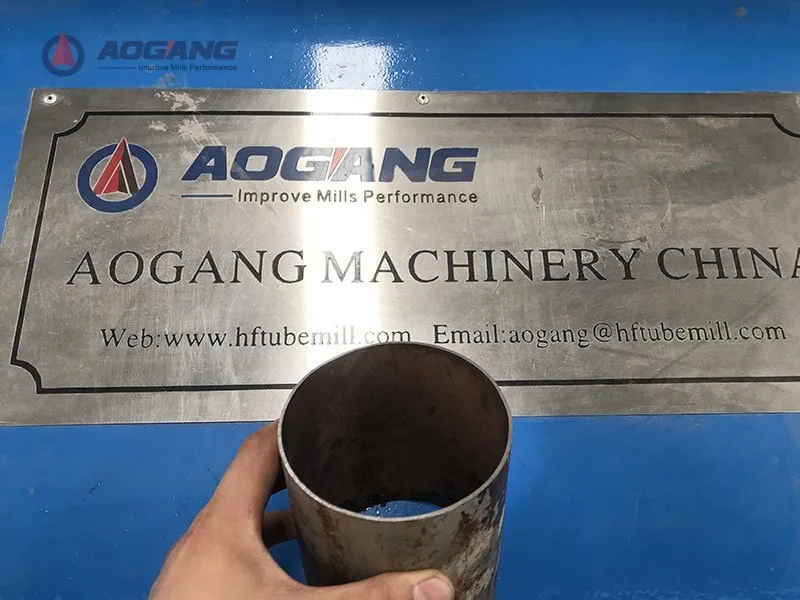

Cold cut saw/NC milling flying saw: end face of tube is smooth and no burr,chamfering is not necessary.
Application
Advantage
Technical Parameter
Video

Application

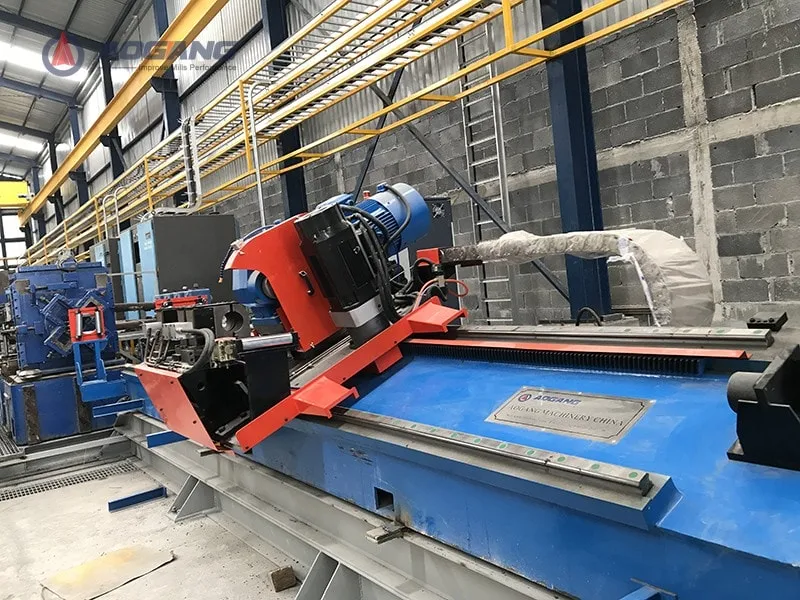

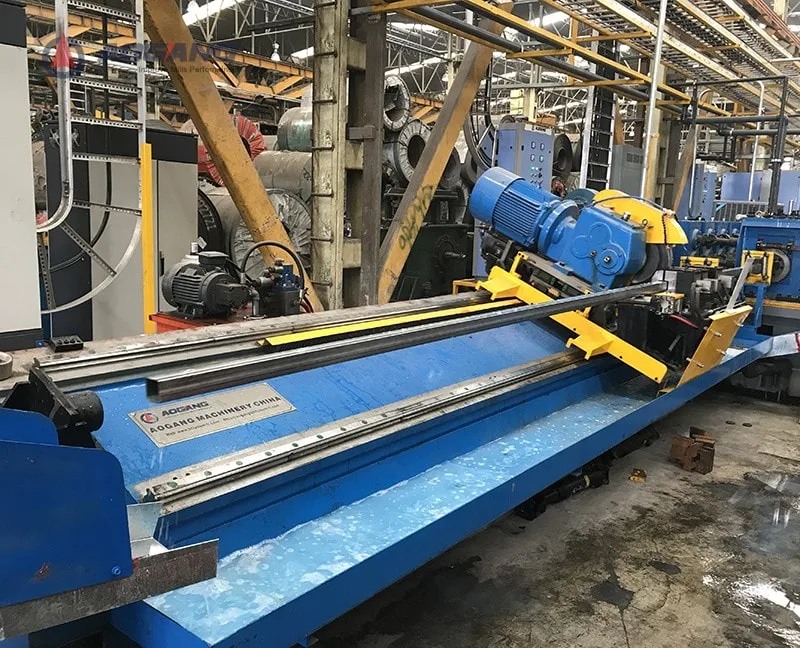

CNC Cold Cutting Saw is to cut the pipe into specified length while it is travelling.

Advantage

  • Our PATENT Ⅰ:After changing or sharpening saw blade, no need to adjust pipe and saw blade position, just push the botton on console, all of actions can be done automatically, it is faster and more precise.
  • ● Our PATENT II: 3 Saw clamps(Jaws), we invented 3 saw clamps, in order to avoid the following problems:when pipe diameter is bigger than 76mm, saw blade stroke is long after cutting, and cutting gap is very small, it may not loose saw blade, then servo alarms and stop, saw blade may be broken after saw car moving back.
  • ● Our PATENT III: Aogang anti-collision mechanism is made up of rubber bumper and anti-rebound unit.When the saw car failed accidentally, the pinion are off the rack and saw car will hit the rubber bumper block. At the same time,the hook on the saw car just catches the anti-bounce pin, the anti-collision block and the anti-bolt pin work together,
    saw car will stop at the offside momentarily, avoiding the pinion damage caused by the violent impact of
    the rebound pinion and the rack.
    ● In order to meet different customers’ requirement, Aogang engineers researched and developed 2 control systems:
    1) Siemens-SIMOTION System: it is specially for high speed motion controller, compose of Simotion D4x5 center controller, S120 Servo Driver, 1FK(T)7 Synchronous permanent magnet machine, ProfiNet Industry Ethernet,and so on.
    2) Aogang System
    ● Based on rich experience, TOP high performance ARM Chips are used, dominant frequency reach up
    Pipe length and pipe mill running speed can be the most correct calculated.
    ● High Quality Speed Measurement Encoder: Aogang uses high quality waterproof and dustproof type encoder from Japan, which can bear external force of 5Kg(radial direction) and 3Kg(shaft direction) individually. After collecting information from our customers, failure rate is lower than 2% during production, reducing pipe mill down time.

Technical Parameter

Model No.Steel pipe diameter (mm)Steel pipe thickness (mm)Max Speed (M/min)
Φ25Φ6-300.3-2.0130
Φ32Φ8-380.3-2.0120
Φ50Φ20-63.50.6-2.5110
Φ76Φ25-760.8-3.090
Φ89Φ25-1050.8-4.080
Φ114Φ50-1301.2-5.060
Φ165Φ80-1652.0-6.050
