76 Tube mill/Pipe mill

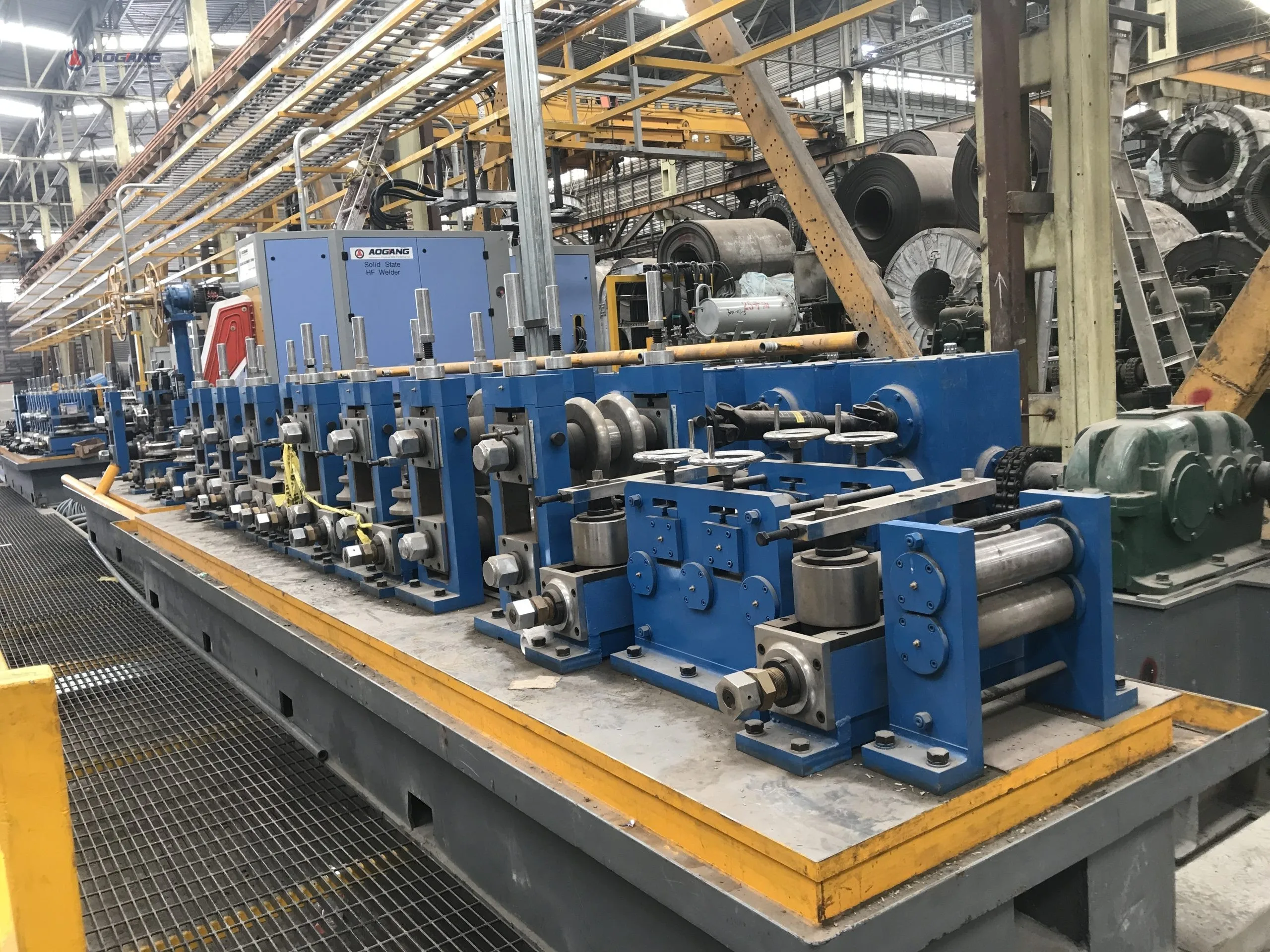

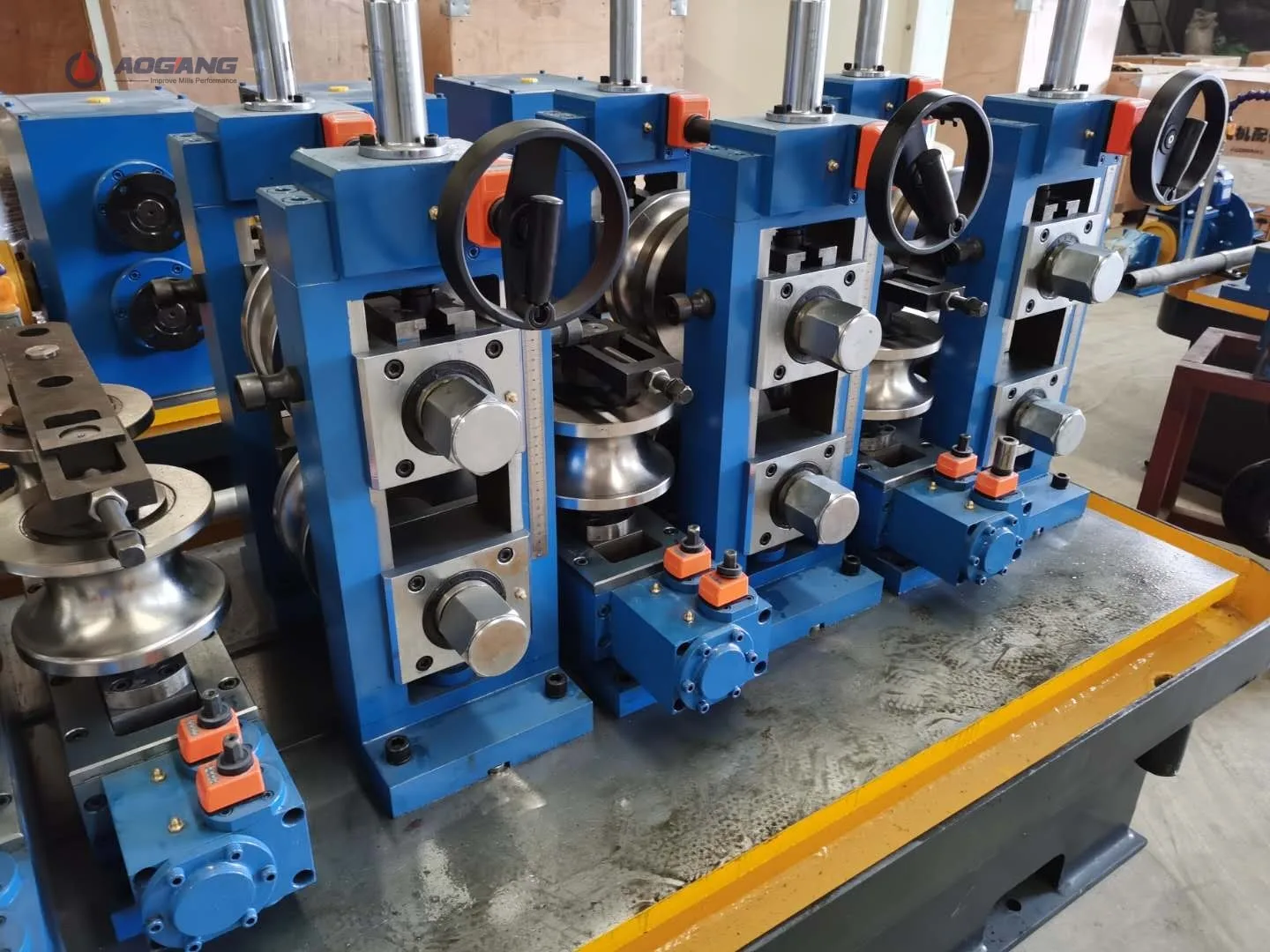

ERW76 tube mill/pipe mill/welded pipe production/pipe making machine is used to produce steel pipes of 22mm-76mm in OD and 0.9mm-4.0mm in wall thickness, as well as corresponding square and rectangular pipe.
Application
Advantage
Technical parameter
Video

Application

GI, construction, automotive, general mechanical tubing, oil and gas, conduit, agriculture, chemistry, conduit.

Advantage

  • High production efficiency, line speed can be up to 80m/min.
  • High automation
  • High strength, the machine works stably at a high speed, which improves product quality.
  • Low defectiveproduct rate
  • Siemens ,Yuskawa, Allen-Bradley motor as option

Technical parameter

Finished product Round Pipe Φ22mm-φ76mm
Thickness: 0.9mm-4.0mm
Square & rectangle tube 19mm×19mm-60mm×60mm

Thickness: 0.9mm-3.0mm

Length 5m-12m
Length Tolerance ±1.5mm
Production Speed 50-80 m/min
Raw Material Coil material ● HR/CR carbon steel or galvanized steel
● High-Strength Low -Alloy- Steel(HSLA)
● Advanced High-Strength Steels (AHSS)
Width 70mm-240mm

Thickness: 0.9mm-4.0mm

Coil ID φ480-φ520mm
Coil OD Φ800~φ1800mm
Coil Weight 2.5-3.0Tons
