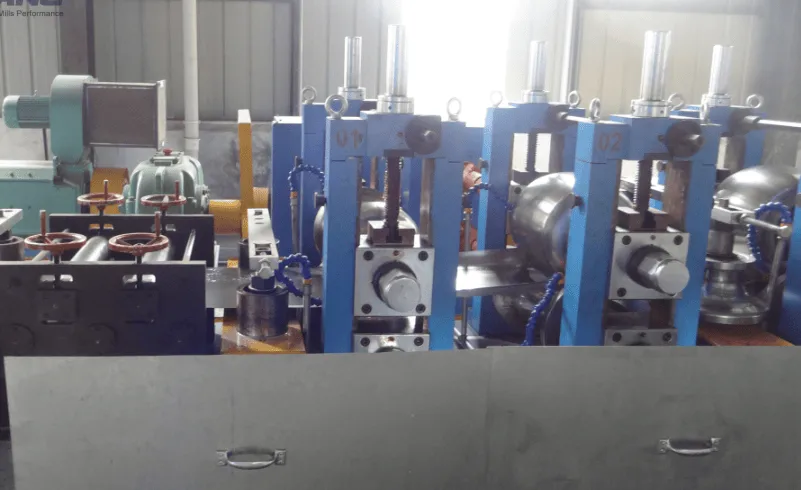

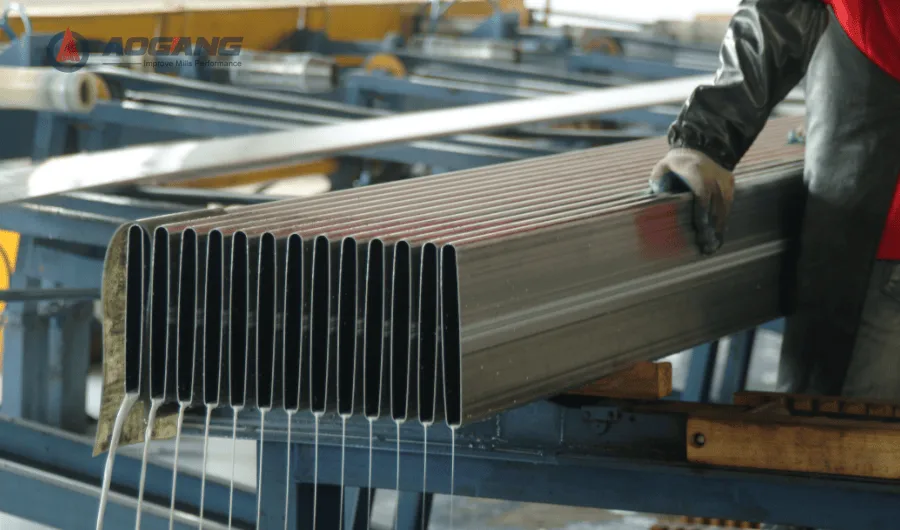

The Air Cooling Condenser Flat Tube Special Production Line is used to produce the condenser tube with single side aluminum layer in the size of 219×19×1.5mm.This kind of tube can mainly apply to the direct air cooling system in the field such as power station, steel factory, coking, chemical industry and pharmacy and so on.
| Items | Specification |
| Tube Size | 218.6±0.8mm×19±0.25mm or as per drawing required by
Buyer. |
| Thickness | 1.5mm |
| Length | 2~ 12m |
| Accuracy | ±3mm |
| Line Speed | 0 ～30 m/min |
| Production capacity | Approx. 45T/shift（8hours） |
