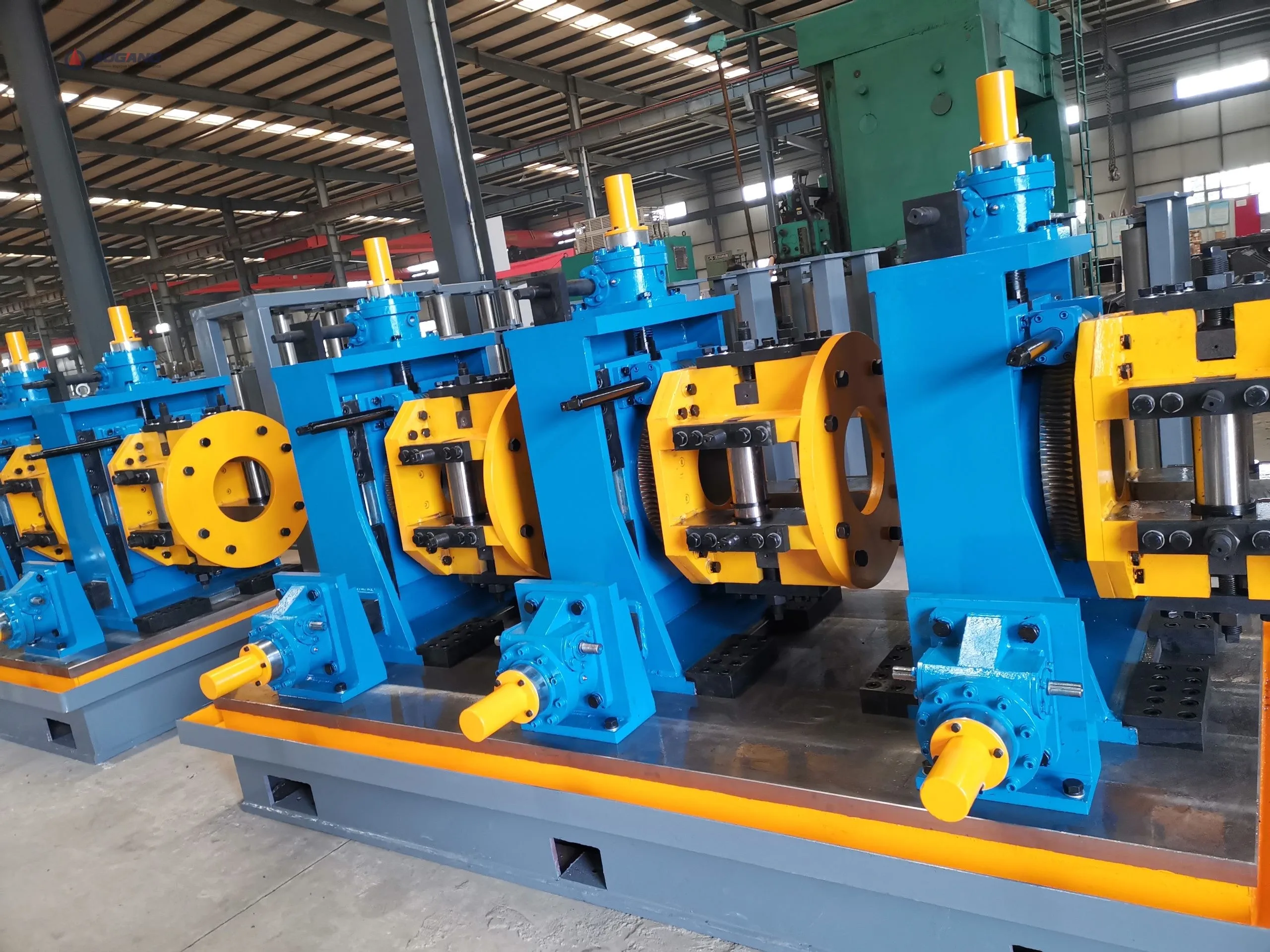

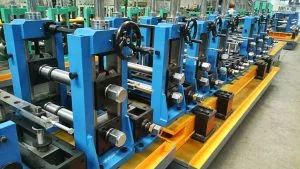

101.6 Tube mill/Pipe mill

ERW101.6 tube mill/pipe mill/welded pipe production/pipe making machine is used to produce steel pipes of 42mm-101.6mm in OD and 1.0mm-4.5mm in wall thickness, as well as corresponding square and rectangular pipe.
Application
Advantage
Technical parameter
Video

Application

GI, construction, automotive, general mechanical tubing, conduit, agriculture, chemistry, nuclear, etc.

Advantage

  • High production efficiency, line speed can be up to 70m/min.
  • High automation
  • High strength, the machine works stably at a high speed, which improves product quality.
  • Low defectiveproduct rate
  • Siemens ,Yuskawa, Allen-Bradley motor as option

Technical parameter

Finished productRound PipeΦ42mm-φ101.6mm
Thickness: 1.0mm-4.5mm
Square & rectangle tube35mm×35mm-80mm×80mm

Thickness:1.0mm-4.5mm

Length5m-12m
Length Tolerance±1.5mm
Production Speed20-70 m/min
Raw MaterialCoil material● HR/CR carbon steel or galvanized steel
● High-Strength Low -Alloy- Steel(HSLA)
● Advanced High-Strength Steels (AHSS)
Width130mm-320mm

Thickness: 1.0mm-4.5mm

Coil IDΦ550-φ610mm
Coil ODΦ1000~φ1800mm
Coil Weight4.0-5.0Tons

Video
