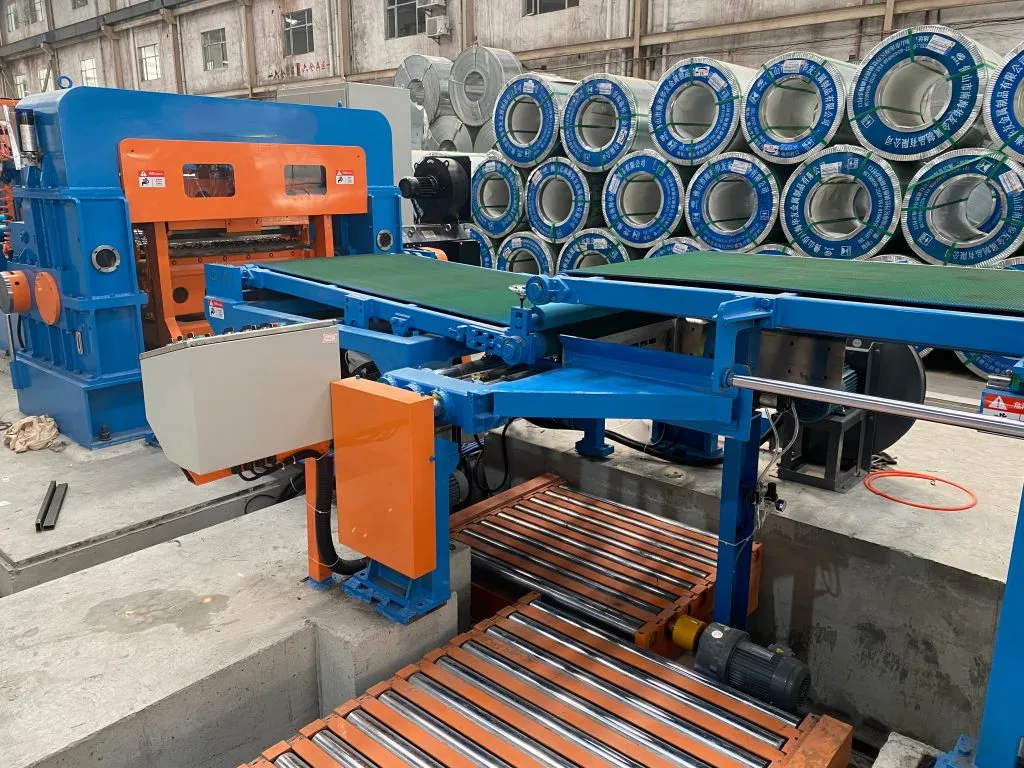

Heavy Gauge Cut to Length Line

Description
Application
Specification
Video

Description

Aogang supply leveling lines and cut-to-length lines, able to satisfy the needs of different types of customers

High performance lines with great flexibility for coils up to 30 tonnes and work speed up to 120 m/min, suitable for steel mills, service centres, the automotive sector.

Compact and simpler lines, very flexible, in cases where a lower production capacity is required.

Our lines are suitable for processing sheet metal with widths up to 2500 mm and gauge varying from 0.5 to 20 mm.



Application

Our cut-to-length lines can process different materials, such as:

  • cold or hot rolled steel
  • aluminium
  • galvanised steel, pre-painted
  • copper
  • high strength steel
  • zinc
  • stainless steel
  • alloys

The lines have different configurations, according to the type of material to be processed and the performance required:

  • start-stop cutting lines, with roller feeder
  • continuous cutting lines with flying shears
  • continuous cutting lines with rotary shear













Specification

ModelMaterial width(mm)Thickness range(mm)Speed(m/min)
CTL600120~6000.3~2.010~120
CTL800120~8000.7~3.510~80
CTL 1300400~13000.8~4.510~60
CTL 1600600~16002.0~6.010~60
CTL 1800900~18003.0~8.010~60
CTL 20001000~20006.0~16.010~30
CTL 22001000~22008.0~20.010~20
CTL 25001000~25008.0~20.010~20
